DroneBeacon db300 Blue UAS approved Remote ID module (MAVLink/DroneCAN)

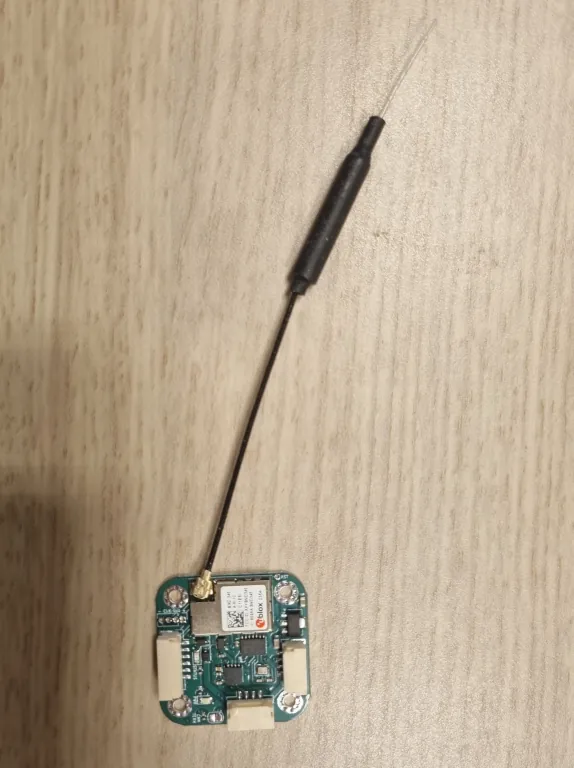

This module is a Remote ID transmitter and can be used to have a standard Remote ID solution as required by the FAA for new drones.  It is similar to the db201 module, it has both a MAVLink and two DroneCAN interfaces. It has a u.FL antenna connector and an antenna is included.  The module can be integrated into your drone (product) that uses ArduPilot or PX4.

The db300 is “Blue UAS” approved. This means that the module fulfills the drone requirements set by
the U.S. Department of Defense/War for government use, ensuring they meet strict security and
operational standards. The db300 has been approved on July 10th 2026 and can be found on the official framework list: https://tyrionprod.servicenowservices.com/gsp?id=framework_list search for db300

Specifications

Remote ID transmission protocols
Bluetooth dual-mode (Bluetooth 4 Legacy + Bluetooth 5 Long Range)
FCC/CE certified radio module
*u-blox BMD-345
*Nordic nRF52840 radio
* External PA 24 dB
Transmit frequency:
* 2.4 GHz
Transmit power
* up to +18 dBm (FCC certified)
Antenna: 2 dBi omni-directional antenna with IPEX connector (included)
Compliant with international regulation
(+20 dBm EIRP / 100 mW with the included 2 dBi antenna)
*EU ASD-STAN DIN EN 4709-002
*USA ASTM Remote ID Standard ASTM F3411-22a-RID-B/ F3586-22
Connectivity:
*2x JST GH 4-pin CAN (DroneCAN) port
CAN 2.0 (1 Mbps) / CAN FD (up to 8 Mbps)
120 ohm termination: solder pad
*1x JST GH 6-pin TELEM (UART/MAVLink) port
57600 baud rate (can be configured to different baudrate)

Power:          +5V supplied from TELEM or CAN port
LED lights:  power (white) and status LED (red)
Fastening     mechanism: 4x M2 screws (20 x 20 mm grid)
Size:              27.5 x 27.5 x 5 mm
Weight:        2.5 g (excluding antenna)
Operating temperature: -40°C to +85°C
NDAA: Sections 848 and 889, plus Blue UAS approval
